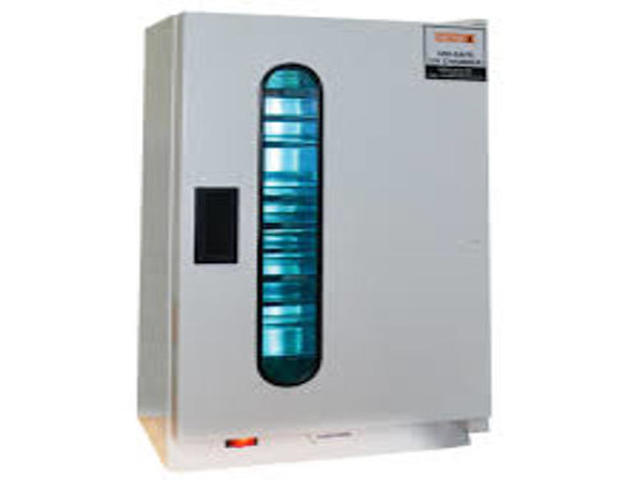

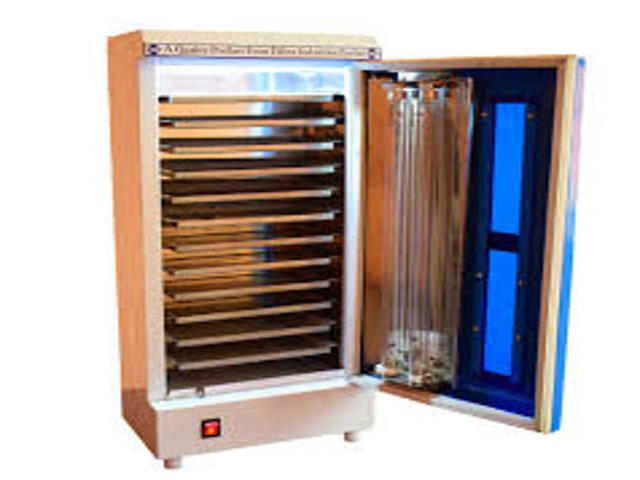

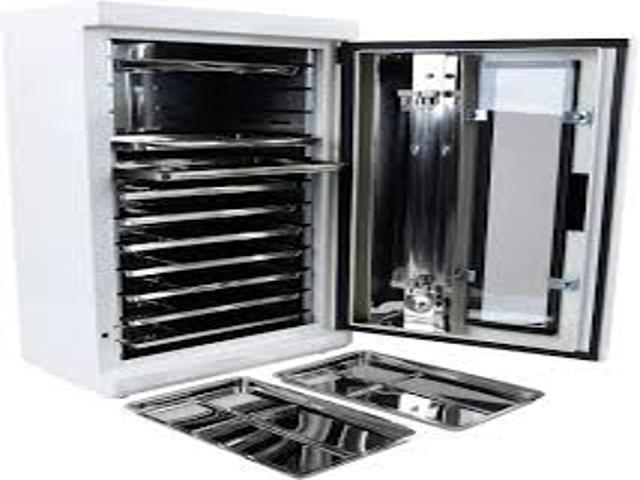

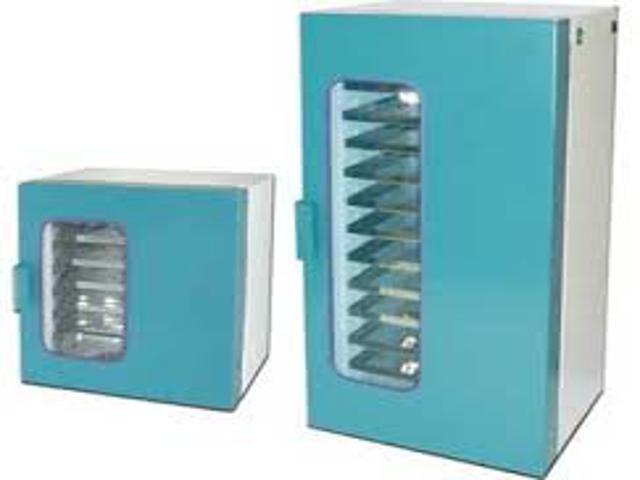

UV CHAMBER

UV CHAMBER Specification

Type
Desktop UV Sterilization Chamber

Chamber Size
20 x 10 x 15 inches (L x W x H)

Chamber Thickness
1.2 mm stainless steel (chamber body)

Outer Size
24 x 12 x 18 inches (L x W x H)

Door Type
Front opening hinged door with viewing window

Design Pressure
Atmospheric

Working Pressure
Atmospheric

Design Temperature
Ambient

Insulation
Double wall with insulation between

Net Weight
Approx. 18 kg

Recording Parameters
Manual operation (electronic timer)

Inner Trolley
Removable stainless steel tray racks

Sterilizing Temperature
Not applicable (Sterilization by UV-C light)

Working Temperature
Ambient

Sterilization Time
5 - 30 minutes adjustable

Temperature Scope
Ambient

Power Consumption
15W - 36W depending on model

Material of Construction
High-grade stainless steel (inner and outer body)

Voltage Supply
230V AC, 50 Hz

UV Lamp Type
Germicidal UV-C lamp, 254 nm wavelength

Viewing Window
Tempered glass with UV protection

Safety Features
Door cutoff safety switch, UV protective glass

Suitable Applications
Sterilization of instruments, laboratory wares, currency, masks, tools, etc.

Number of Shelves
3 removable stainless steel shelves

Control Panel
Digital timer and start/stop buttons

About UV CHAMBER

UV Chamber Product Description

A UV Chamber is a highperformance sterilization and testing unit designed to utilize ultraviolet UV light for disinfection curingaging tests and contamination control Built with durable materials and advanced UV technology the chamber ensures efficient and uniform exposure for reliable results across laboratory medical dentalindustrial and research applicatiion

Specifications

UV Wavelength 254 nm 365 nm customizable

Chamber Material Stainless Steel

Power Supply 220240V AC

Timer Range Adjustable

Capacity Available in multiple sizes

This UV Chamber is engineered to deliver safe reliable and efficient UV processing for professional and industrial environments

Robust Stainless Steel Design

Crafted entirely from high-grade stainless steel, both the inner and outer bodies of the UV chamber guarantee lasting durability and superior resistance to corrosion. The double-wall insulation ensures safe usage, while removable shelves and a front-opening hinged door provide exceptional accessibility. This solid construction makes the sterilizer ideal for frequent use in busy settings.

Effective UV-C Germicidal Technology

Using a UV-C lamp at a germicidal 254 nm wavelength, this chamber ensures rapid and thorough sterilization. Items placed inside are exposed to intense ultraviolet light, destroying bacteria, viruses, and other pathogens without the use of heat or chemicals. The adjustable timer lets users customize the sterilization cycle according to their needs.

Advanced Safety and User-Friendly Controls

Safety is paramount: the chamber is fitted with a door cutoff switch that deactivates the UV-C lamp when the door is open, along with UV-protective tempered glass for secure monitoring. The digital control panel provides straightforward operation with clear start, stop, and timing functions, ensuring both efficacy and ease of use.

FAQ's of UV CHAMBER:

Q: How does the UV Chamber sterilize items placed inside?

A: The UV Chamber uses a germicidal UV-C lamp emitting light at 254 nm, which disrupts the DNA of bacteria, viruses, and other pathogens. This non-thermal process neutralizes microorganisms effectively within 5 to 30 minutes, depending on the preset sterilization time.

Q: What materials and objects can be safely sterilized in this UV chamber?

A: The chamber is suitable for sterilizing laboratory instruments, glassware, currency, masks, tools, and similar items. However, it is intended for non-living objects only, as UV-C can be harmful to living tissues.

Q: When should the UV chamber be used for optimal sterilization?

A: The UV chamber should be used whenever daily or routine sterilization is required, particularly in laboratory, clinical, or hygienic environments. Frequent use is recommended for high-touch items and after any possible exposure to contaminants.

Q: Where is the best location to install and operate the UV chamber?

A: This desktop sterilization unit is compact, making it ideal for laboratory benches, clinic counters, or any clean, flat workspace. It requires access to a standard 230V AC power supply and should be placed in well-ventilated areas away from direct moisture.

Q: What is the process to operate the UV sterilization chamber safely?

A: To use, place items on the metal shelves, securely close the front door, set the digital timer within the 5-30 minute range, and press the start button. The safety interlock ensures the UV lamp will not operate if the door is open, preventing accidental exposure.

Q: How does the safety feature of the UV Chamber protect users?

A: The door cutoff switch ensures the UV-C lamp deactivates whenever the door is opened. Additionally, the tempered viewing window is UV-protective, preventing harmful radiation from escaping while allowing safe observation of the sterilization process.

Q: What are the benefits of using a UV sterilization chamber over traditional methods?

A: A UV chamber provides rapid, chemical-free sterilization at ambient temperature, allowing sensitive instruments and materials to be disinfected without risk of thermal damage. This method is energy-efficient, easy to operate, and does not leave residues on items.
